A pooling-based genome-wide analysis identifies new potential candidate genes for atopy in the European Community Respiratory Health Survey (ECRHS)
- Francesc Castro-Giner†1, 2, 3,
- Mariona Bustamante†3, 4,
- Juan Ramon González1, 2, 3,
- Manolis Kogevinas1, 2, 3, 5,
- Deborah Jarvis6,
- Joachim Heinrich7,
- Josep-Maria Antó1, 2, 3, 8,
- Matthias Wjst9,
- Xavier Estivill3, 4, 8 and
- Rafael de Cid3, 4, 10Email author
© Castro-Giner et al; licensee BioMed Central Ltd. 2009
Received: 1 April 2009
Accepted: 6 December 2009
Published: 6 December 2009
Asthma and atopy are complex phenotypes with shared genetic component. In this study we attempt to identify genes related to these traits performing a two-stage DNA pooling genome-wide analysis in order to reduce costs. First, we assessed all markers in a subset of subjects using DNA pooling, and in a second stage we evaluated the most promising markers at an individual level.
For the genome-wide analysis, we constructed DNA pools from 75 subjects with atopy and asthma, 75 subjects with atopy and without asthma and 75 control subjects without atopy or asthma. In a second stage, the most promising regions surrounding significant markers after correction for false discovery rate were replicated with individual genotyping of samples included in the pools and an additional set of 429 atopic subjects and 222 controls from the same study centres.
Homo sapiens protein kinase-like protein SgK493 (SGK493) was found to be associated with atopy. To lesser extent mitogen-activated protein kinase 5 (MAP3K5), collagen type XVIII alpha 1 (COL18A1) and collagen type XXIX alpha 1 (COL29A1) were also found to be associated with atopy. Functional evidences points out a role for MAP3K5, COL18A1 and COL29A1 but the function of SGK493 is unknown.
In this analysis we have identified new candidate regions related to atopy and suggest SGK493 as an atopy locus, although these results need further replication.
Asthma and atopy are complex phenotypes with environmental and genetic determinants. Several chromosomal regions and candidate genes have been implicated in asthma or atopy susceptibility [1, 2]. Genome wide association (GWA) studies have been successful in the identification of loci contributing to complex diseases, included asthma [3–5]. However a limitation of GWA studies is the high economic cost required. A cost-effective alternative is the use of pooled DNA followed by individual genotyping [6–8]. In this study, we performed a pooling-based GWA for asthma and atopy, with further validation of most promising regions in the individual pooled samples as well as in a second set of cases and controls.
Population characteristics of asthma and atopy analyzed samples
Atopic asthma subsample
Subjects excluded*, n (%)
Age, mean (sd)
Males, n (%)
Females, n (%)
Current, n (%)
Ex, n (%)
Never, n (%)
Allele frequencies for each SNP were estimated from pooled samples correcting by the ratio of intensity of both alleles . Allele frequencies in each pool were compared using the 1 df chi-square T statistic for testing differences between two proportions accounting for experimental and sampling errors . Multiple testing was controlled using a false discovery rate (FDR) at 5% . Allele frequency estimation was validated using a pool of 57 samples from HapMap whose individual genotypes for 300K Illumina panel were previously known. Predicted and real allele frequencies showed a strong correlation (Pearson correlation coefficient, r = 0.99).
Individual genotyping in ECHRS
In a second stage, replication was performed by individual genotyping of subjects included in the pools (n = 225) and in an additional set of 429 atopic subjects (46% with asthma) and 222 controls subjects randomly selected from the ECRHS study. Only promising SNPs that were still significant after correction by multiple testing were followed up. Target regions were delimited by non significant SNPs (p > 0.05) upstream and downstream from the SNP significant associated after multiple testing corrections in the first stage (see Additional file 1: table S1). Complex regions with genomic structural variants were discarded for this study (chr 1 and chr 5) . For the saturation we used a tag SNP approach forcing the inclusion of the polymorphisms detected in the first stage, or their perfect tags (r2 ≥ 0.8). From the HapMap project data set, we utilized genotypes from the public release 21a (phase II; NCBI35, dbSNPb125) corresponding to 90 individuals from the CEPH 30 trios of European descent. The selection of tag SNPs was performed using the pair-tagging strategy implemented in Haploview software (v.4.0) with a MAF ≥ 0.05 and an r2 ≥ 0.8 . In addition to HapMap SNPs, four other polymorphisms previously described to be associated with atopic dermatitis and situated in one of the targeted regions (COL29A1) were included . The 53 SNPs selected were genotyped in individual samples using SNPlex technology (Applied Biosystems).
Genotyping quality was controlled by including negative controls and internal positive controls consisting in four replicates of two HapMap reference samples. Both, genotype concordances with the HapMap database and among replicates, were verified. Genotype data caring was done using SNP analysis to results software (SNPator) http://www.snpator.com/. Forty-five out of 225 pooled samples and 145 out of 651 replication samples were dropped from the individual analysis due to low volume of DNA available or low concentration (Table 1). Seven out of 53 genotyped SNPs were excluded from the analysis since deviation from Hardy-Weinberg equilibrium (HWE) (in controls p < 0.05) or showed a genotyping rate under 80%. The final replication set included 46 SNPs with an overall genotyping rate of 97% in 686 samples (Table 1). Genotyping assays were performed at the Barcelona Node of the "Centro Nacional de Genotipado" (CeGen) in Spain.
The statistical analysis for data derived from individual genotyping was performed assuming an additive genetic model and using logistic regression using R statistical software package . Models were adjusted for age, sex and smoking status. Country of origin was considered in the regression models in order to discard confounding by population stratification . Linkage disequilibrium (LD) blocks were estimated according to Gabriel et al.  method implemented in Haploview.

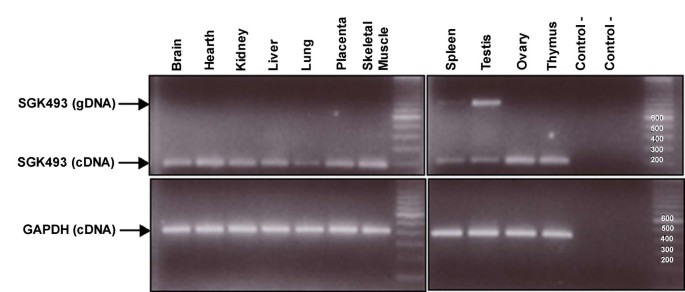

SGK493 tissue expression
A human RNA tissue panel (Stratagene) including brain, heart, kidney, liver, lung, placenta, skeletal muscle, spleen, testis, ovary and thymus was used to evaluate the expression of SGK493. One μg of RNA was converted to cDNA using the SuperScript III First-Strand Synthesis System for RT-PCR (Invitrogen). SGK493 and the GAPDH genes were amplified in independent PCRs using the following primers SGK493-F: 5'-AAGTGACGGACCTGGATGAC-3' and SGK493-R: 5'-TGTGAGGCAGGAGGTATGTG-3' and GAPDH-F: 5'-ACCCAGAAGACTGTGGATGG-3' and GAPDH-R: 5'-TGCTGTAGCCAAATTCGTTG-3'. The expected fragment sizes according to hg18 are 189 bp and 415 bp, respectively. The PCR was performed on a final volume of 25 μl using 0.5 U of BioTherm DNA polymerase (GeneCraft), 2 mM of Mg, 50 μM of each dNTP, 0.12 μM of each primer and 1 μl or 0.5 ul of cDNA (SGK493 and GAPDH, respectively). Finally 10 μl of the SGK493 PCR and 5 μl of the GAPDH PCR were resolved on a 2% agarose gel.
The study was conducted in accordance with the Declaration of Helsinki Principles. Ethical approval was obtained for each centre from the appropriate institutional ethics committee and all subjects participating in this study provided informed consent.
SNPs associated with asthma or atopy with a FDR of 5% in the pooling-based GWA
Atopy vs. controls
1.26 × 10-7
Atopy vs. controls
4.63 × 10-7
Atopy-Asthma vs. controls
1.11 × 10-7
Atopy vs. controls
5.38 × 10-7
Atopy vs. controls
3.94 × 10-7
Atopy vs. controls
3.93 × 10-7
Atopy vs. controls
7.56 × 10-7
Atopy vs. controls
1.59 × 10-7
Summary of the SNPs significantly associated with atopy at an individual level
ECHRS Atopy vs. controls
1.9 × 10-6†
Haplotype analysis and multiple regression for SGK493 gene variants.
The intronic SNP rs9494554, located within MAP3K5, was associated with atopy in the pooling and replication samples, and remained significant in the combined analysis after Bonferroni correction. A similar association for rs9494554 was observed in the subsample of atopic asthmatic individuals (see Additional file 1: table S2). Other SNP in MAP3K5 (rs9402839) was nominally significant for atopy in pooling sample and border significant in the replication step.
We performed a two-stage DNA pooling-based GWA for asthma and atopy, evaluating a genome-wide panel of markers in a subset of subjects using a DNA pooling strategy, and in a second stage we evaluated the most promising markers at an individual level in the individual pooled samples as well as in a second set of cases and controls. We identified SGK493 as a new potential gene associated to atopy. MAP3K5, COL18A1 and COL29A1 genes were found to lesser extent associated with atopy.
The most significant results were observed for SGK493 gene, in chromosome 2, with similar results for atopy and for atopic asthma, probably due to sharing predisposing factors . Significant polymorphisms were located in two different linkage disequilibrium blocks. The first block includes the putative promoter region of SGK493 (5' upstream) and the second block covers part of the gene and the 3' untranslated region (UTR) and 3'downstream region (Figure 1). Haplotype based analysis confirmed results obtained in single marker analysis. We could not elucidate which is the functionality of these SNPs and a fine mapping of the region within a more powered sample would be required. We cannot exclude that the functional variant could be tagged by these SNPs and located in another close gene. SGK493 gene was identified during the creation of a catalogue of human protein kinases , but its particular function is unknown. SGK493 could be involved in pathological states as protein kinases mediate most of the signal transduction in eukaryotic cells . We reported that SGK493 gene is ubiquitously expressed in human tissues, however a higher expression on lung and uterus was previously identified by microarray experiment from 73 human tissues http://biogps.gnf.org/. Recently, the knock out of Sgk493 (also known as Pkdcc) in mouse has been described presenting extreme phenotypes that are not a priori related with atopy or asthma. The knock out mice showed abnormal respiration and died within a day possibly due to cleft palate .
Another kinase MAP3K5 was also related to atopy as well as atopic asthma in this study. MAP3K5 encodes for a member of the mitogen-activated protein kinase family that regulates the activation of the transcription factor activator protein-1 (AP1) in leukotriene D (4) (LTD(4)) stimulated airway smooth muscle cells and in nitric oxygen (NO) stimulated bronchial epithelial cells [25, 26]. AP1 play a role in the production of airway inflammation .
Polymorphisms in COL18A1 and COL29A1 were not consistently replicated. The COL18A1 polymorphism shown to be significantly associated with atopy in the pooling sample is located at the 3' coding region of the gene. COL18A1 encodes a protein expressed in epithelial and endothelial basement membranes, involved in regulation of angiogenesis and endothelial cell proliferation [27–29]. The COL29A1 polymorphism was previously found to be associated with atopic dermatitis . Finally, a region situated in chromosome 8, which contains a predicted gene (NT_007995.50), was also analyzed in detail. Nominally associations were observed in the pooling sample for atopy, but they were not replicated.
Signals described in previous GWA for atopy, asthma and related phenotypes have not been detected in this study [3–5]. The lack of replication of the GWA results can be caused by differences in the definition used to classify affected individuals, genetic coverage of the genome and the p value threshold . In particular, the region detected by Moffatt et al on chromosome 17 has been associated with childhood onset asthma, while in this study the asthmatic individuals were selected independently of their asthma onset. We have not detected the FCER1A region identified by Weidinger et al for atopy, but a different genotyping platform was used.
Despite significant replication values of most promising SNPs found in the GWA in pooled DNA, we acknowledge some limitations as the lack of replication for some of the loci identified in the pooling based analysis. Non-replication of the initial findings is a common feature of the initial findings in GWA studies , mainly due to heterogeneity in the aetiology of the disease and biases. In addition, the impossibility of detection and adjustment by potential confounders in the analysis of DNA pooling could produce the inconsistencies observed.
Another of the main limitation is the sample size for pool construction and replication. Regarding DNA pooling, the method for measure allele frequency differences corrects by the number of subjects included in each pool . After this correction we obtained some signals at very low p-values, which reinforce the strength of these results. Given limited sample, our study was able to detect variants with larger effects in this population and probably other variants with smaller effects would not be detected. False positives are controlled in the replication phase by individual analysis. Other pooling strategies such as use of different sub-samples of pools would allow capture more biological variation. We acknowledge that with having larger pools we may be losing positive signals but we consider this as a less crucial issue for this analysis. Power calculation shows that replication sample was powered to detect reported associations given the parameters observed in the analysis of individual pooling data (see Additional file 1: table S3). For this reason, some of the results were replicated and significance for a SNP in SGK493 reaches Bonferroni level. Although this type of correction by multiple testing is over-conservative and induces false negatives, it is a good indicator of the significance level. In addition to the significance level, some of the results were replicated in the additional sample and replication is considered essential to establish the validity of associations .
Finally, another limitation is the small number of regions analyzed in detail in the individual analysis. We discarded complex regions with segmental duplications and putative insertions or deletions  because their complexity could a priori result in reducing power to detect associations due to non-classical inheritance patterns of markers located on them. In contrast, disease definition is a positive feature of this study since it is highly homogeneous among patients derived from different ECHRS centre, and this is a keystone for valid inferences in association studies.
In summary, we identified a region related to atopy on chromosome 2p21 that contains SGK493 gene. A non-synonymous SNP in COL18A1, intronic variants in MAP3K5 and a polymorphism in COL29A1, previously related to atopic dermatitis, were also associated with atopy, but not consistently replicated. Follow-up analysis in larger sample sets, as well fine mapping will be needed to validate these susceptibility loci.
- SGK493 :
protein kinase-like protein SgK493
- COL29A1 :
collagen, type XXIX, alpha 1
- MAP3K5 :
mitogen-activated protein kinase kinase kinase 5
- ASK1 :
apoptosis signal-regulating kinase 1
- SLC19A1 :
solute carrier family 19 (folate transporter), member 1
- COL18A1 :
collagen, type XVIII, alpha 1
European Community Respiratory Health Survey
single nucleotide polymorphisms
false discovery rate
transcription factor activator protein-1 (AP1) in leukotriene D (4)
vascular endothelial growth factor
- FCER1A :
Fc IgE receptor, alpha polypeptide.
Part of this work was supported by the Spanish Ministry for Science and Innovation [MTM2008-02457 to JRG and FC; and SAF2008-00357 to XE, MB and R de C], and Public Health and Epidemiology Network Biomedical Research Center (CIBERESP). The genotyping and part of the DNA extractions were performed at the Spanish National Genotyping Centre (CEGEN).
- Ober C, Hoffjan S: Asthma genetics 2006: the long and winding road to gene discovery. Genes Immun. 2006, 7: 95-100. 10.1038/sj.gene.6364284.View ArticlePubMedGoogle Scholar
- Denham S, Koppelman GH, Blakey J, Wjst M, Ferreira MA, Hall IP, et al: Meta-analysis of genome-wide linkage studies of asthma and related traits. Respir Res. 2008, 9: 38-10.1186/1465-9921-9-38.View ArticlePubMedPubMed CentralGoogle Scholar
- Moffatt MF, Kabesch M, Liang L, Dixon AL, Strachan D, Heath S, et al: Genetic variants regulating ORMDL3 expression contribute to the risk of childhood asthma. Nature. 2007, 448: 470-473. 10.1038/nature06014.View ArticlePubMedGoogle Scholar
- Wilk JB, Walter RE, Laramie JM, Gottlieb DJ, O'Connor GT: Framingham Heart Study genome-wide association: results for pulmonary function measures. BMC Med Genet. 2007, 8 (Suppl 1): S8-10.1186/1471-2350-8-S1-S8.View ArticlePubMedPubMed CentralGoogle Scholar
- Weidinger S, Gieger C, Rodriguez E, Baurecht H, Mempel M, Klopp N, et al: Genome-wide scan on total serum IgE levels identifies FCER1A as novel susceptibility locus. PLoS Genet. 2008, 4: e1000166-10.1371/journal.pgen.1000166.View ArticlePubMedPubMed CentralGoogle Scholar
- Pearson JV, Huentelman MJ, Halperin RF, Tembe WD, Melquist S, Homer N, et al: Identification of the genetic basis for complex disorders by use of pooling-based genomewide single-nucleotide-polymorphism association studies. Am J Hum Genet. 2007, 80: 126-139. 10.1086/510686.View ArticlePubMedGoogle Scholar
- Steer S, Abkevich V, Gutin A, Cordell HJ, Gendall KL, Merriman ME, et al: Genomic DNA pooling for whole-genome association scans in complex disease: empirical demonstration of efficacy in rheumatoid arthritis. Genes Immun. 2007, 8: 57-68. 10.1038/sj.gene.6364359.View ArticlePubMedGoogle Scholar
- Zhao Y, Wang S: Optimal DNA pooling-based two-stage designs in case-control association studies. Hum Hered. 2009, 67: 46-56. 10.1159/000164398.View ArticlePubMedGoogle Scholar
- Burney PG, Luczynska C, Chinn S, Jarvis D: The European Community Respiratory Health Survey. Eur Respir J. 1994, 7: 954-960.View ArticlePubMedGoogle Scholar
- Craig DW, Huentelman MJ, Hu-Lince D, Zismann VL, Kruer MC, Lee AM, et al: Identification of disease causing loci using an array-based genotyping approach on pooled DNA. BMC Genomics. 2005, 6: 138-10.1186/1471-2164-6-138.View ArticlePubMedPubMed CentralGoogle Scholar
- Visscher PM, Le Hellard S: Simple method to analyze SNP-based association studies using DNA pools. Genet Epidemiol. 2003, 24: 291-296. 10.1002/gepi.10240.View ArticlePubMedGoogle Scholar
- Benjamini Y, Drai D, Elmer G, Kafkafi N, Golani I: Controlling the false discovery rate in behavior genetics research. Behav Brain Res. 2001, 125: 279-284. 10.1016/S0166-4328(01)00297-2.View ArticlePubMedGoogle Scholar
- Kidd JM, Cooper GM, Donahue WF, Hayden HS, Sampas N, Graves T, et al: Mapping and sequencing of structural variation from eight human genomes. Nature. 2008, 453: 56-64. 10.1038/nature06862.View ArticlePubMedPubMed CentralGoogle Scholar
- Barrett JC, Fry B, Maller J, Daly MJ: Haploview: analysis and visualization of LD and haplotype maps. Bioinformatics. 2005, 21: 263-265. 10.1093/bioinformatics/bth457.View ArticlePubMedGoogle Scholar
- Soderhall C, Marenholz I, Kerscher T, Ruschendorf F, Esparza-Gordillo J, Worm M, et al: Variants in a novel epidermal collagen gene (COL29A1) are associated with atopic dermatitis. PLoS Biol. 2007, 5: e242-10.1371/journal.pbio.0050242.View ArticlePubMedPubMed CentralGoogle Scholar
- R Development Core Team: R: A language and environment for statistical computing. R Foundation for Statistical Computing. Vienna, Austria. 2007, [http://www.R-project.org]Google Scholar
- Heath SC, Gut IG, Brennan P, McKay JD, Bencko V, Fabianova E, et al: Investigation of the fine structure of European populations with applications to disease association studies. Eur J Hum Genet. 2008, 16: 1413-1429. 10.1038/ejhg.2008.210.View ArticlePubMedGoogle Scholar
- Gabriel SB, Schaffner SF, Nguyen H, Moore JM, Roy J, Blumenstiel B, et al: The structure of haplotype blocks in the human genome. Science. 2002, 296: 2225-2229. 10.1126/science.1069424.View ArticlePubMedGoogle Scholar
- Gara SK, Grumati P, Urciuolo A, Bonaldo P, Kobbe B, Koch M, et al: Three novel collagen VI chains with high homology to the alpha3 chain. J Biol Chem. 2008, 283: 10658-10670. 10.1074/jbc.M709540200.View ArticlePubMedGoogle Scholar
- Skol AD, Scott LJ, Abecasis GR, Boehnke M: Joint analysis is more efficient than replication-based analysis for two-stage genome-wide association studies. Nat Genet. 2006, 38: 209-213. 10.1038/ng1706.View ArticlePubMedGoogle Scholar
- Manning G, Whyte DB, Martinez R, Hunter T, Sudarsanam S: The protein kinase complement of the human genome. Science. 2002, 298: 1912-1934. 10.1126/science.1075762.View ArticlePubMedGoogle Scholar
- Cohen P: Protein kinases--the major drug targets of the twenty-first century?. Nat Rev Drug Discov. 2002, 1: 309-315. 10.1038/nrd773.View ArticlePubMedGoogle Scholar
- Su AI, Wiltshire T, Batalov S, Lapp H, Ching KA, Block D, et al: A gene atlas of the mouse and human protein-encoding transcriptomes. Proc Natl Acad Sci USA. 2004, 101: 6062-6067. 10.1073/pnas.0400782101.View ArticlePubMedPubMed CentralGoogle Scholar
- Imuta Y, Nishioka N, Kiyonari H, Sasaki H: Short limbs, cleft palate, and delayed formation of flat proliferative chondrocytes in mice with targeted disruption of a putative protein kinase gene, Pkdcc (AW548124). Dev Dyn. 2009, 238: 210-222. 10.1002/dvdy.21822.View ArticlePubMedGoogle Scholar
- Kumasawa F, Hashimoto S, Onose A, Jibiki I, Mizumura K, Matsumoto K, et al: Apoptosis signal-regulating kinase 1 in leukotriene D(4)-induced activator protein-1 activation in airway smooth muscle cells. Eur J Pharmacol. 2005, 517: 11-16. 10.1016/j.ejphar.2005.05.001.View ArticlePubMedGoogle Scholar
- Jibiki I, Hashimoto S, Maruoka S, Gon Y, Matsuzawa A, Nishitoh H, et al: Apoptosis signal-regulating kinase 1-mediated signaling pathway regulates nitric oxide-induced activator protein-1 activation in human bronchial epithelial cells. Am J Respir Crit Care Med. 2003, 167: 856-861. 10.1164/rccm.2204042.View ArticlePubMedGoogle Scholar
- Marneros AG, Olsen BR: Physiological role of collagen XVIII and endostatin. FASEB J. 2005, 19: 716-728. 10.1096/fj.04-2134rev.View ArticlePubMedGoogle Scholar
- Asai K, Kanazawa H, Otani K, Shiraishi S, Hirata K, Yoshikawa J: Imbalance between vascular endothelial growth factor and endostatin levels in induced sputum from asthmatic subjects. J Allergy Clin Immunol. 2002, 110: 571-575. 10.1067/mai.2002.127797.View ArticlePubMedGoogle Scholar
- Suzaki Y, Hamada K, Sho M, Ito T, Miyamoto K, Akashi S, et al: A potent antiangiogenic factor, endostatin prevents the development of asthma in a murine model. J Allergy Clin Immunol. 2005, 116: 1220-1227. 10.1016/j.jaci.2005.08.052.View ArticlePubMedGoogle Scholar
- Ioannidis JP, Patsopoulos NA, Evangelou E: Heterogeneity in meta-analyses of genome-wide association investigations. PLoS ONE. 2007, 2: e841-10.1371/journal.pone.0000841.View ArticlePubMedPubMed CentralGoogle Scholar
- Ioannidis JP: Non-replication and inconsistency in the genome-wide association setting. Hum Hered. 2007, 64: 203-213. 10.1159/000103512.View ArticlePubMedGoogle Scholar
- Chanock SJ, Manolio T, Boehnke M, Boerwinkle E, Hunter DJ, Thomas G, et al: Replicating genotype-phenotype associations. Nature. 2007, 447: 655-660. 10.1038/447655a.View ArticlePubMedGoogle Scholar
- The pre-publication history for this paper can be accessed here:http://www.biomedcentral.com/1471-2350/10/128/prepub
This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
